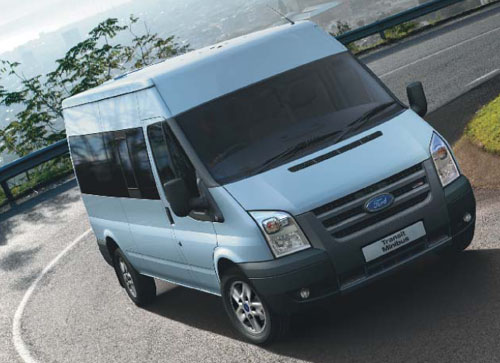

A Ford Transit 14 seat minibus in Avalon paint and optional appearance pack

The Ford Transit 14 seat is a rear wheel drive, single rear wheel minibus which comes in a medium roof height and accommodates 13 passengers plus the driver. It meets the M1 European Private Hire Vehicle safety requirements.

This minibus is 2084mm wide (with mirrors), 5680mm long and has a turning circle of 13.3m kerb to kerb. Seating configuration is driver and dual front passenger, second row dual seat, third, fourth and fifth rows have a dual seat and a single seat.

NB. The 3500kg GVW (350) version of the 14 seat Ford Transit may be driven by a non category D1 license holder on a non-commercial basis (towing and roof-loading not permitted). But the 3700kg GVW (370) version cannot be driven by a non category D1 license holder. We do not list the (370) version as the Ford Transit 17 seater also requires a D1 to drive on a non commercial basis are a more sensible purchase as you will get 3 extra passenger seats.

If you require sales or leasing of a crewvan for 6 people or a panel van visit our Van website.

See also Renault Trafic Passenger 9 Seat, Minibus Insurance, Renault Trafic Panel Vans, Renault Master Panel Vans

A Ford Transit 14 seater with optional alloy wheels

There are two versions of the Transit 14 seat minibus. T350 for the 3500kg version and T370 for the 3700kg version. The T370 requires a D1 category to drive and can be used to pull a trailer as it has a GTM of 5500kg. The T350 does not need a D1 category but cannot be used to tow a trailer as it has a Gross Train Weight equalling the Gross Vehicle Mass.


2011-2013 Euro V T350/T370 dimensions

The medium roof Euro V Transit 14 seat has the following dimensions:-

Overall length (excluding rear step): 5680mm
Overall width (with/withour mirrors): 2374/2084mm
Overall height (unladen): 2394mm
Front of vehicle to front wheel centre: 933mm
Wheelbase: 3750mm
Rear of vehicle to rear wheel centre: 997mm
Side door entry width: 650mm
Rear door entry width: 1540mm
Floorspace between wheelarches: 1390mm
Rear door entry height: 1566mm
Side door entry height: 1500mm
Loading height (unladen): 710mm
Kerb to kerb turning circle: 13.3m
Wall to wall turning circle: 14.3m

NB. All dimensions are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 T350 Euro V weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive T350 Euro V version has the following weights and loads:-

Gross payload: 1056kg
Gross vehicle mass: 3500kg
Kerb mass: 2444kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1296kg
Rear axle plated mass: 2250kg
Rear axle kerb mass: 1092kg
Maximum gross train mass: 3500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 T370 Euro V weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive T370 Euro V version has the following weights and loads:-

Gross payload: 1256kg
Gross vehicle mass: 3700kg
Kerb mass: 2444kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1296kg
Rear axle plated mass: 2250kg
Rear axle kerb mass: 1092kg
Maximum gross train mass: 5500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 Euro V T350/T370 emissions and fuel consumption guide

CO2 emissions: 209 g/km
Urban fuel consumption (mpg): 29.7
Extra Urban fuel consumption (mpg): 40.9
Combined fuel consumption (mpg): 36.2

NB. Fuel consumption and CO2 emissions are specified for a vehicle type and not for a single vehicle. Real world consumption can vary as the fuel efficiency of a vehicle is influenced by (individual) vehicle configurations, driving behaviour, use of technical equipment such as air conditioning, as well as other non-technical factors.

Transit 14 seater finance (HP)

How much does a transit 14 seat minibus cost to finance and own?
