More Information

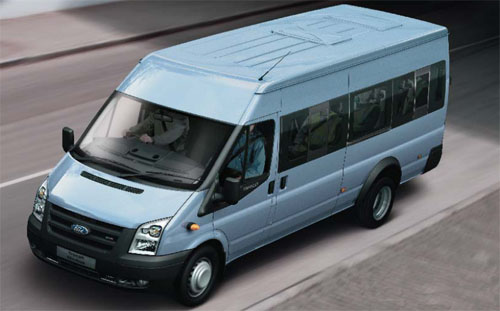

A Ford (430) 17 seat medium roof minibus in Moondust Silver Metallic paint

The Ford Transit 17 seat is a rear wheel drive, twin rear wheel minibus which comes in two roof heights (Medium and High) and accommodates 16 passengers. It meets the M1 European Private Hire Vehicle safety requirements.

This minibus is 2084mm wide (with mirrors), 6403mm long and has a turning circle of 13.3m kerb to kerb. Seating configuration is driver and dual front passenger, second row dual seat, third fourth fifth and sixth rows have a dual seat and a single seat.

NB. The Ford Transit 17 seat minibus is over 3500kgs and as such will require a D1 category license holder to drive on a non commercial basis. The Ford Transit 12 seat (350) minibus can be driven by non D1 license holder.

If you require sales or leasing of a crewvan for 6 people or a panel van visit our Ford Transit Van website.

See also Renault Trafic Passenger 9 Seat, Minibus Insurance, Renault Trafic Panel Vans, Renault Master Panel Vans

Medium Roof Transit 17 seater

2011-2013 Euro V medium roof version dimensions

The medium roof Euro V Transit 17 seat has the following dimensions:-

Overall length (excluding rear step): 6403mm
Overall width (with/withour mirrors): 2492/2084mm
Overall height (unladen): 2380mm
Front of vehicle to front wheel centre: 933mm
Wheelbase: 3750mm
Rear of vehicle to rear wheel centre: 1720mm
Side door entry width: 650mm
Rear door entry width: 1540mm
Floorspace between wheelarches: 1153mm
Rear door entry height: 1566mm
Side door entry height: 1500mm
Loading height (unladen): 715mm
Kerb to kerb turning circle: 13.3m
Wall to wall turning circle: 14.3m

NB. All dimensions are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 Euro V medium roof version weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive Euro V version has the following weights and loads:-

Gross payload: 1366kg
Gross vehicle mass: 4100kg
Kerb mass: 2734kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1286kg
Rear axle plated mass: 2950kg
Rear axle kerb mass: 1448kg
Maximum gross train mass: 5500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 Euro V medium roof version emissions and fuel consumption guide

CO2 emissions: 209 g/km
Urban fuel consumption (mpg): 29.4
Extra Urban fuel consumption (mpg): 40.4
Combined fuel consumption (mpg): 35.8

NB. Fuel consumption and CO2 emissions are specified for a vehicle type and not for a single vehicle. Real world consumption can vary as the fuel efficiency of a vehicle is influenced by (individual) vehicle configurations, driving behaviour, use of technical equipment such as air conditioning, as well as other non-technical factors.

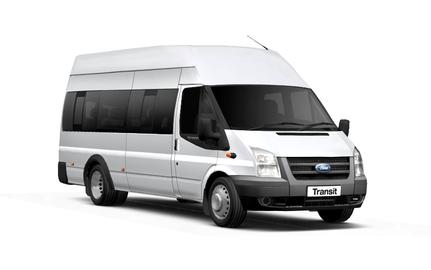

High Roof Transit 17 Seater

2011-2013 Euro V high roof version dimensions

The high roof Euro V Transit 17 seat has the following dimensions:-

Overall length (excluding rear step): 6403mm
Overall width (with/withour mirrors): 2492/2084mm
Overall height (unladen): 2624mm
Front of vehicle to front wheel centre: 933mm
Wheelbase: 3750mm
Rear of vehicle to rear wheel centre: 1720mm
Side door entry width: 650mm
Rear door entry width: 1540mm
Floorspace between wheelarches: 1153mm
Rear door entry height: 1796mm
Side door entry height: 1500mm
Loading height (unladen): 715mm
Kerb to kerb turning circle: 13.3m
Wall to wall turning circle: 14.3m

NB. All dimensions are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 Euro V high roof version weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive Euro V version has the following weights and loads:-

Gross payload: 1339kg
Gross vehicle mass: 4100kg
Kerb mass: 2761kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1290kg
Rear axle plated mass: 2950kg
Rear axle kerb mass: 1471kg
Maximum gross train mass: 5500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

2011-2013 Euro V high roof version emissions and fuel consumption guide

CO2 emissions: 209 g/km
Urban fuel consumption (mpg): 29.4
Extra Urban fuel consumption (mpg): 40.4
Combined fuel consumption (mpg): 35.8

NB. Fuel consumption and CO2 emissions are specified for a vehicle type and not for a single vehicle. Real world consumption can vary as the fuel efficiency of a vehicle is influenced by (individual) vehicle configurations, driving behaviour, use of technical equipment such as air conditioning, as well as other non-technical factors.

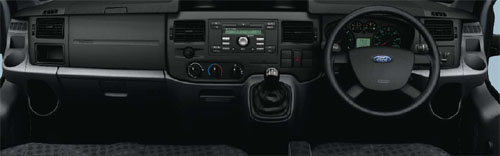

Interior

Transit 17 seater finance (HP)

How much does a transit 17 seat minibus cost to finance and own?
