A Ford Transit 12 seat minibus with optional alloy wheels and metallic paint.

There are two models of the Ford Transit 12 seater: T350 and T370. Within these two models there are two trim levels. Base and Trend. It should be noted that it is only the T350 model, Base or Trend that can be driven on a normal car licence over the age of 21, not for hire and reward. The T370 requires a D1 category to drive. ie.

• T350 Base (3500kgs GVW)
• T350 Trend (3500kgs GVW)
• T370 Base (3700kgs GVW) - requires D1 category to drive
• T370 Trend (3700kgs GVW) - requires D1 category to drive

The standard specification has european type approval and is approved for the UK market include due to its crash tested M1 seating.

NB. It is only the Ford Transit (350) 12 seat minibus below which can be driven under a normal B category car licence. (T350) signifies a gross vehicle weight of 3500kgs.

See also Renault Trafic Passenger 9 Seat, Minibus Insurance, Renault Trafic Panel Vans, Renault Master Panel Vans

T350 & T370 Layout

T350 & T370 12 seat layout showing dual front passenger seat and the luggage area

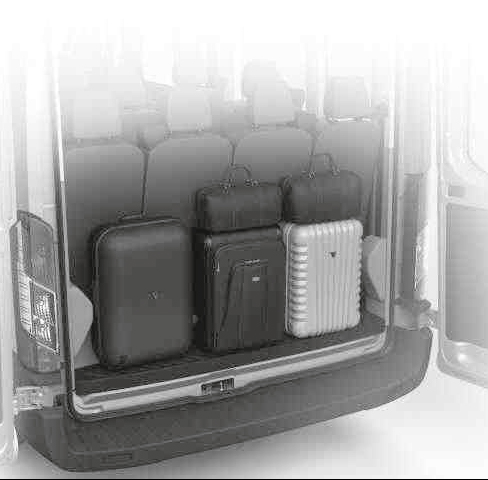

T350 & T370 Luggage area

Another view of the 12 seat rear luggage area

Colours Available

The 12 seat T350 and T370 models come in the following colours:

Solid colours: Frozen White, Race Red or Blazer Blue (non chargeable)
Metallic colours: Moondust Silver, Stratosphere Blue, Tectonic Silver, Panther Black, Lunar Sky, Deep Impact Blue or Midnight Sky (chargeable optional extra)

T350 & T370 common specifications

There are two versions of the Transit 12 seat minibus. T350 for the 3500kg version and T370 for the 3700kg version. The T370 requires a D1 category to drive and can be used to pull a trailer, as it has a GTM (gross train mass) of 5500kg. The T350 does not need a D1 category but cannot be used to tow a trailer as it has a Gross Train Mass equalling the Gross Vehicle Mass.


Euro 6 T350/T370 dimensions

The medium roof Euro 6 Transit 12 seat has the following dimensions:-

Overall length (excluding rear step): 5531mm
Overall width (with/withour mirrors): 2474/2059mm
Overall height (unladen): 2550mm
Front of vehicle to front wheel centre: 1023mm
Wheelbase: 3300mm
Rear of vehicle to rear wheel centre: 1208mm
Side door entry width: 1300mm
Rear door entry width: 1565mm
Floorspace between wheelarches: 1392mm
Rear door entry height: 1648mm
Side door entry height: 1600mm
Loading height (unladen): 668mm
Kerb to kerb turning circle (16inch wheels): 11.9m
Wall to wall turning circle (16inch wheels): 12.6m

NB. All dimensions are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

T350 Euro 6 weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive T350 Euro 6 version has the following weights and loads:-

Gross payload: 938kg
Gross vehicle mass: 3500kg
Kerb mass: 2562kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1299kg
Rear axle plated mass: 2100kg
Rear axle kerb mass: 1263kg
Maximum gross train mass: 3500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

T370 Euro 6 weights and loads

The 2.2 TDCi 135ps (100kW) rear wheel drive T370 Euro 6 version has the following weights and loads:-

Gross payload: 1145kg
Gross vehicle mass: 3700kg
Kerb mass: 2605kg
Front axle plated mass: 1750kg
Front axle kerb mass: 1321kg
Rear axle plated mass: 2250kg
Rear axle kerb mass: 1284kg
Maximum gross train mass: 5500kg

NB. All weights and loads are subject to manufacturing tolerances and refer to minimum specification models and do not include additional equipment. These figures are for quidance only.

Euro 6 T350/T370 emissions and fuel consumption guide

CO2 emissions: 196 g/km
Urban fuel consumption (mpg): 31.4
Extra Urban fuel consumption (mpg): 43.5
Combined fuel consumption (mpg): 38.2

NB. Fuel consumption and CO2 emissions are specified for a vehicle type and not for a single vehicle. Real world consumption can vary as the fuel efficiency of a vehicle is influenced by (individual) vehicle configurations, driving behaviour, use of technical equipment such as air conditioning, as well as other non-technical factors.

BASE model specification

The base model T350 and T370 12 seat minibus has the following specifications. See next section for the differences in the Trend version.

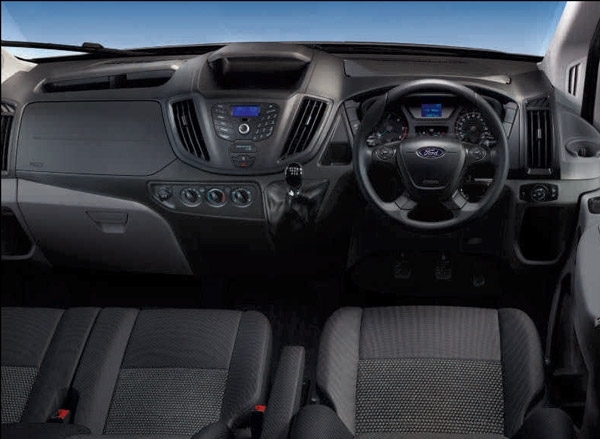

Dashboard of the 12 seat T350 & T370 BASE models

T350 & T370 BASE Exterior Features:-

• Day running lights
• Remote central locking
• Wide bodyside mouldings
• Power side step
• Intergrated rear step
• Auto Start-Stop system
• ESC/ABS/Hill Start Assist
• Curve Control
• Emergency Brake Warning
• Full size spare wheel
• Ford Easy-Fuel capless refuelling
• Euro VI emissions compliant

T350 & T370 BASE Interior Features:-

• Radio with AUX, Bluetooth, USB/IPod connectivity and remote controls
• Rake and reach steering adjustment
• Trip computer
• Power windows 1 shot up/down
• 8-way adjustable driver's seat with armrest
• Dual Passenger with under-seat storage
• Fold out front passenger seat table
• Glovebox with A4 file storage
• 2 x 12v power points
• Overhead stowage console

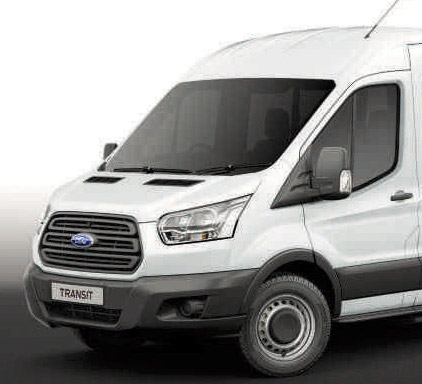

image of the front of a Transit 12 seat BASE model

TREND model specification

The TREND model T350 & T370 12 seat minibus has the following specifications in addition to the BASE model above.

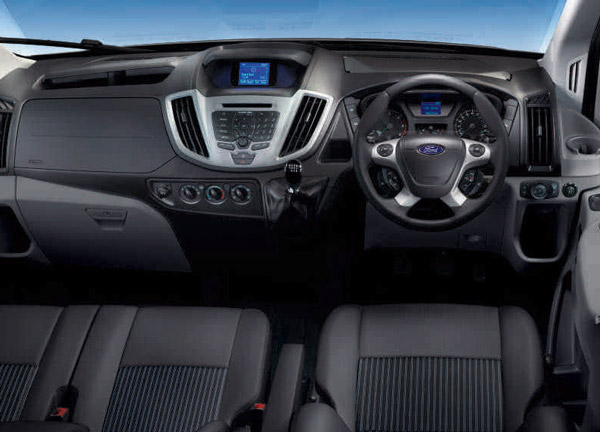

Dashboard of the 12 seat T350 & T370 TREND models

T350 & T370 Exterior - in addition to BASE specification above:-

• Front fog lights
• Power heated folding mirrors
• Automatic headlights
• Rain-sensing wipers
• Heated windscreen
• Projector style headlights with static cornering lights
• Front and rear parking sensors
• Twin remote keys
• Full wheel covers
• Metallic Paint

T350 & T370 Interior - in addition to BASE specification above:-

• Front & rear air conditioning
• Cruise Control with Adjustable speed limiter
• Radio?CD with FordSYNC and Emergency Assistance
• Leather-trimmed 4-spoke steering wheel
• Leather-trimmed gearshift knob
• Driver seat lumbar adjust
• Lockable glovebox
• Privacy glass from B-pillar rearwards
• Reclinable seats with armrests

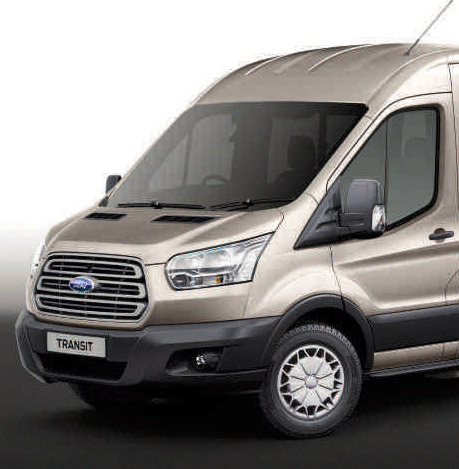

Image of the front of a Transit 12 seat TREND model
